Core Advantages

Voltage Regulation Accuracy:Phase voltage 220V ±3%, 110V ±6%

Operating Frequency:50Hz–60Hz

Overvoltage Protection:246V ±4V

Fast response time:≤1.0 s (when input voltage changes by 10%)

Ambient Temperature:-10°C to +40°C

Temperature Rise:< 60°C

Waveform Distortion:No additional waveform distortion

Load Factor:0.8

Dielectric Strength:1500V / 1 min

Insulation Resistance：≥ 2 MΩ

Introduction

A three-phase high-precision automatic AC voltage stabilizer is an industrial power protection device designed to automatically regulate unstable input voltage and maintain a stable output voltage for three-phase electrical equipment.

It uses a servo motor control system + autotransformer + control circuit to continuously adjust voltage in real time.

TDR serie is composed of a contact-type auto-transformer, a servo motor, a control circuit, etc. When the grid voltage is unstable or the load changes, the voltage stabilizer automatically samples the signal, and the control circuit sends a signal to drive the servo motor. The motor adjusts the position of the carbon brush on the auto-transformer to regulate the output voltage of the stabilizer to the rated value and maintain a stable state.This series of voltage stabilizers features small size, light weight, and simple structure. It can be widely used in various residential, commercial, and industrial power supply applications.

Specifications

Applications of Three-Phase High-Precision Automatic AC Voltage Stabilizer

1. Industrial Manufacturing & Automation

Our series: CNC machine voltage stabilizer, industrial automation power protection, factory voltage regulator

Widely used in manufacturing environments where stable power supply is critical for production continuity and precision.CNC machining centers (lathe, milling, drilling machines),Laser cutting and laser welding systems,Injection molding and plastic processing machines,Stamping and metal forming equipment,Industrial robots and automated production lines,Packaging and filling machines,Ensures stable voltage for high-precision manufacturing and reduces production defects caused by voltage fluctuation.

2. Precision Instruments & Testing Equipment

Our series: laboratory voltage stabilizer, precision instrument power supply, test equipment voltage regulator

Suitable for high-sensitivity measurement and calibration systems requiring ultra-stable power input.Metrology and calibration equipment,Spectrometers and chromatography systems,Material testing machines,Industrial inspection systems,Research laboratory equipment,Improves measurement accuracy and ensures reliable test results.

3. Medical Equipment Power Protection

Our series: medical voltage stabilizer, hospital power stabilizer, CT MRI power protection

Used in hospitals and medical facilities where uninterrupted and clean power is essential.CT / MRI auxiliary power systems,Medical imaging equipment,Laboratory analyzers,Sterilization and disinfection equipment,Prevents voltage instability from affecting imaging quality and equipment performance.

4. Data Centers & Communication Systems

Our series: data center voltage stabilizer, server room power protection, telecom power stabilizer

Critical for IT infrastructure and communication networks.Data center server systems，Telecom base stations，Network switches and routers，Edge computing cabinets，Prevents reboot, data loss, and system failure caused by voltage fluctuations.

5. Renewable Energy & Power Systems

Our series: solar inverter stabilizer, wind power voltage regulator, power quality improvement system

Used in energy generation and distribution systems to improve power quality.

Solar photovoltaic systems (PV inverters)，Wind power generation systems，Industrial power distribution systems，Generator output stabilization。Enhances system stability and protects downstream equipment.

6. Heavy Industry & Harsh Environments

Our series: industrial heavy duty voltage stabilizer, mining equipment power protection, steel plant voltage regulator

Designed for demanding industrial environments with unstable power supply.

Metallurgy and steel production equipment, Mining machinery systems, Petrochemical control systems,Shipyard shore power systems.Ensures continuous operation in harsh electrical conditions.

7. Commercial & Infrastructure Applications

Our series:commercial voltage stabilizer, building power protection system, HVAC voltage stabilizer

Used in large-scale commercial and infrastructure facilities.Central air conditioning systems (HVAC),Elevators and escalator systems,Cold storage and refrigeration systems,Shopping malls and commercial complexes,Hotels and building power distribution systems.Prevents downtime in critical building infrastructure systems.

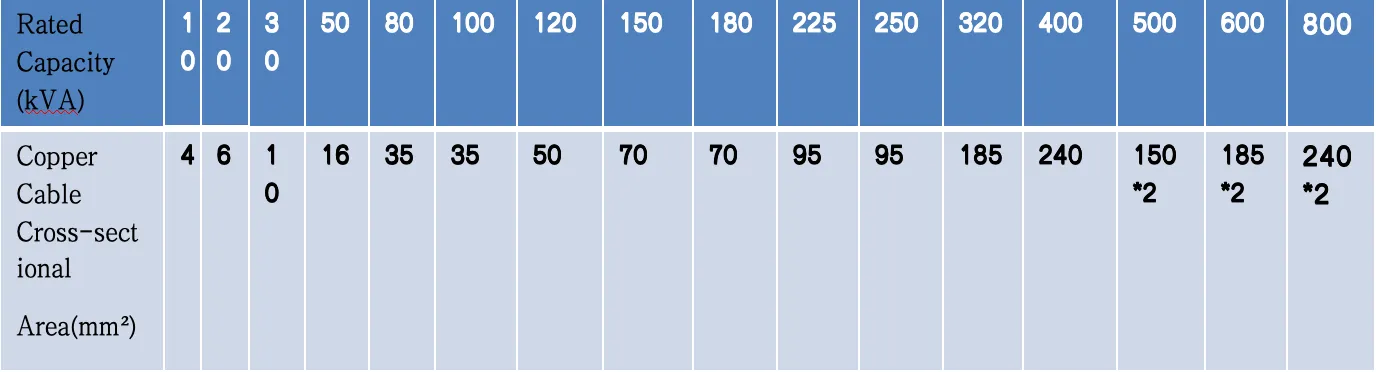

Voltage stabilizer capacity wiring reference table: rated capacity (kVA) vs. recommended copper conductor cross-sectional area (mm²)：
